Includes high-speed feeding system/precise motion control module/high-speed acquisition module/high-speed intelligent processing module/high-speed sorting system/real-time control system

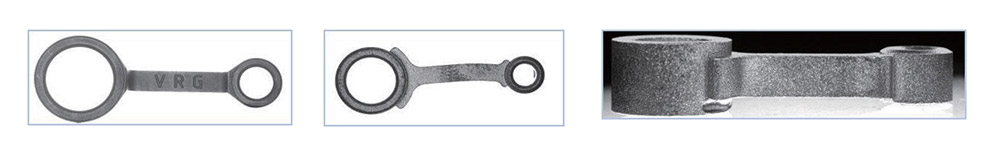

Appearance of the tested product
Parameters
|
Device dimensions |
1500mm*1500mm*1800mm |
Equipment weight |
600KG |
|
input air pressure |
0.5-0.8MPal |
input power |
AC220V+15% 50HZ |
|
PC configuration |
16GB memory, Win11-64 bit operating system |
detection efficiency |
4000 pieces/hour (PCS/H) |
|
Discharge method |
OK, NG parts conveyor belt feeding TBD material box feeding |
camera information |
6 sets of Gige camera detection stations, frame rate 50fps |
| communication | Network port (supporting 0PC, WebAPI, TCP/IP, SQLServer, etc.) |
|
|
| Test Item | Whether there is rust, powder loss, cracking, sticking, collision, steel stamp (mixed material), and whether there are holes (mixed material) |
|
|
